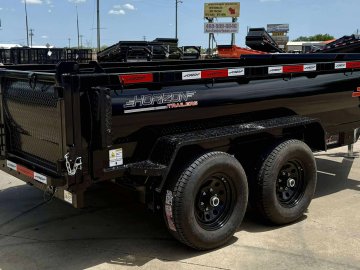

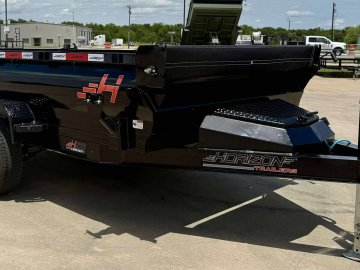

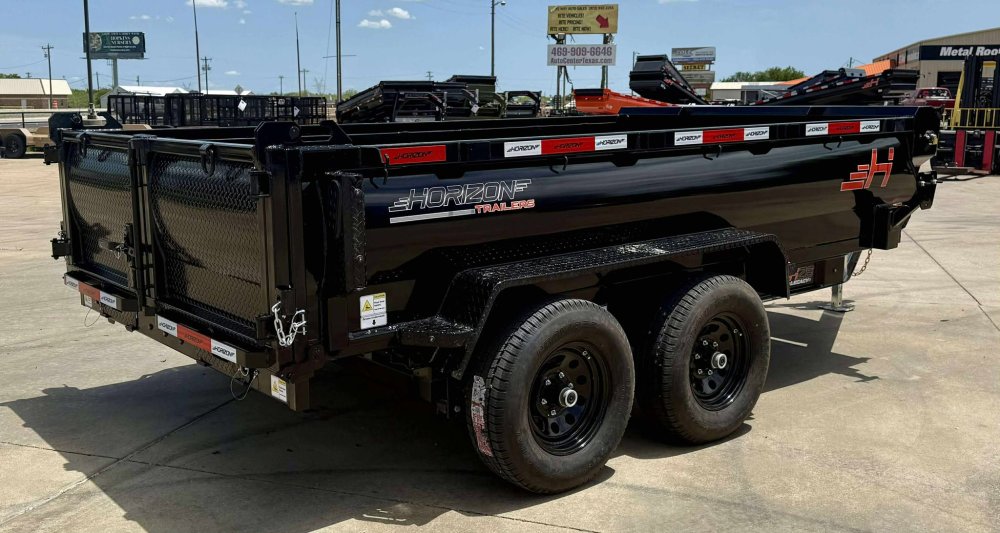

77"x12' Horizon HZ6 Dump
Key Features – Horizon HZ6 Dump Trailer
Frame & Bed Construction
• 6" I-beam frame (8.5 lbs/ft) for heavy-duty strength
• 9-gauge steel dump bed
• 3" channel crossmembers spaced 16" on center
• 14-gauge diamond plate fenders
• Welded D-rings (4) for secure tie-downs
Hydraulic System & Dump Performance
• 2-button hydraulic hoist control
• KTI 12V hydraulic pump with power-up / power-down operation
• 2-button remote control

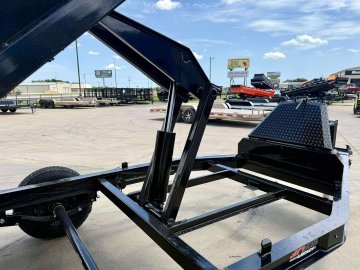

• 5" x 16" single push hydraulic cylinder
• Up to 15,000 lbs of lifting capacity

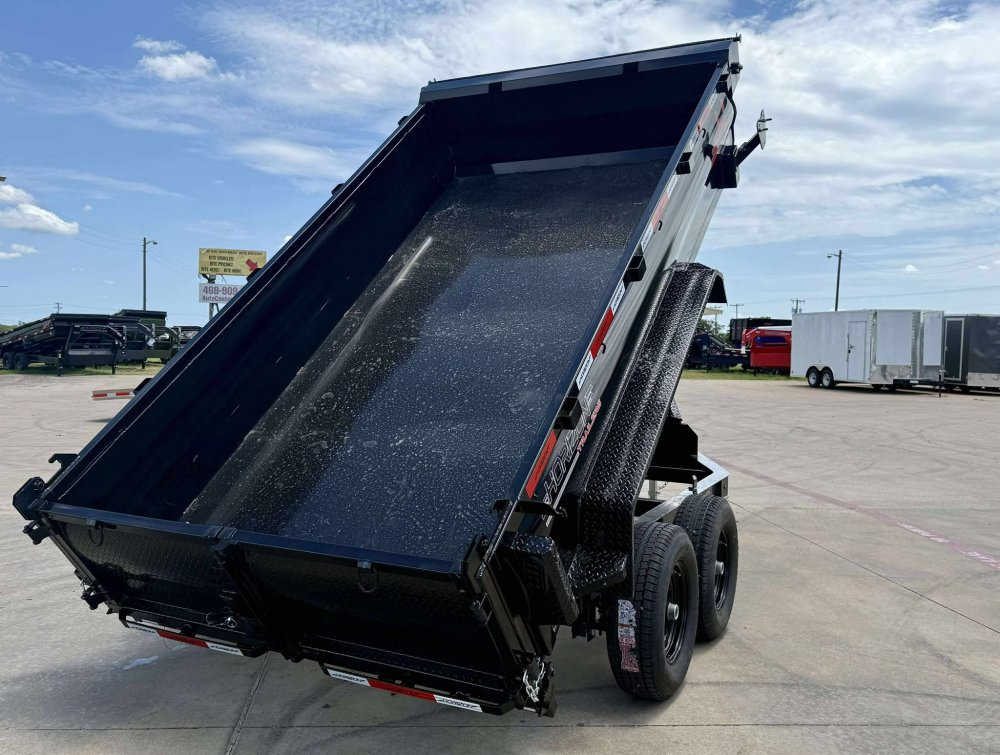

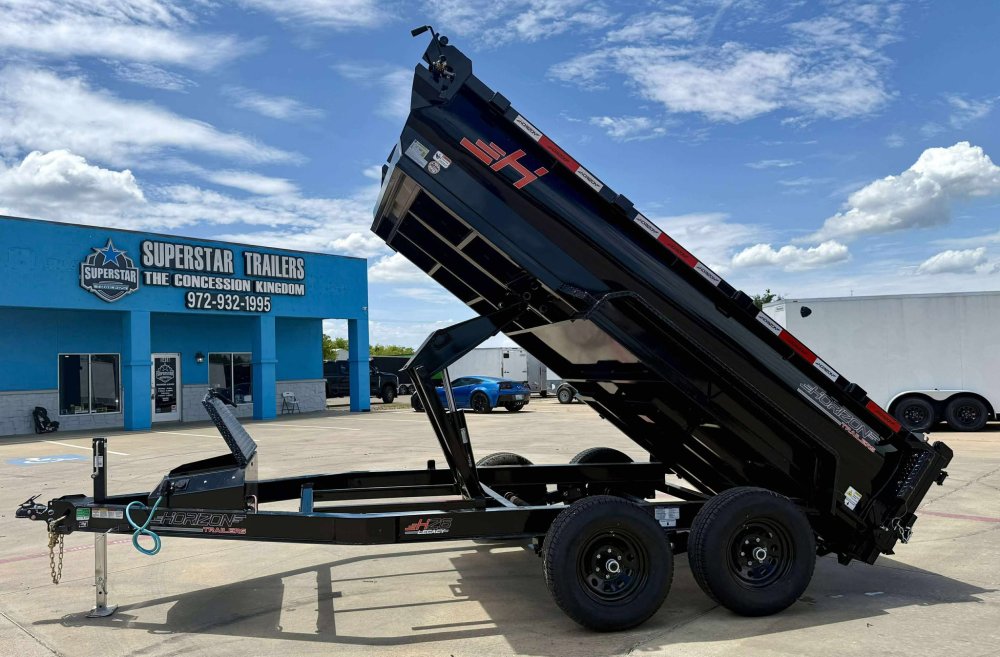

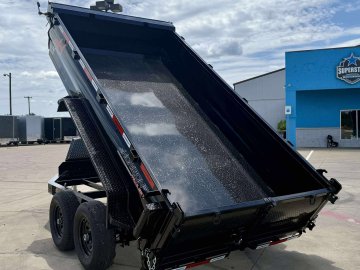

• 45° dump angle

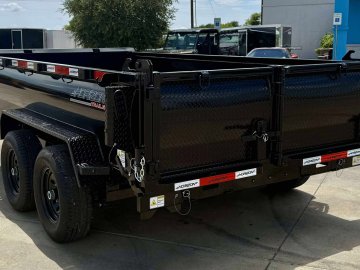

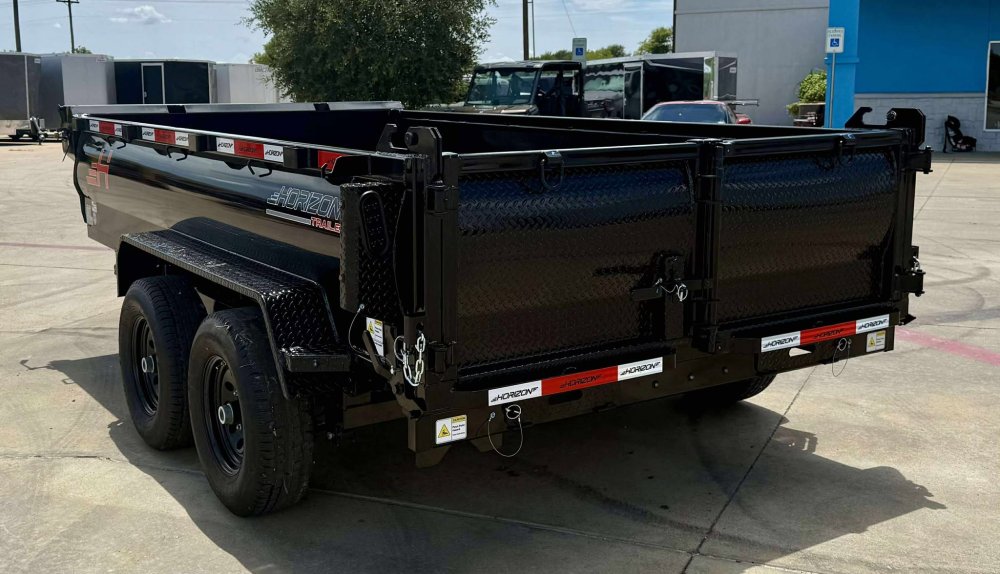

• 3-way spreader gate
Loading & Utility Features

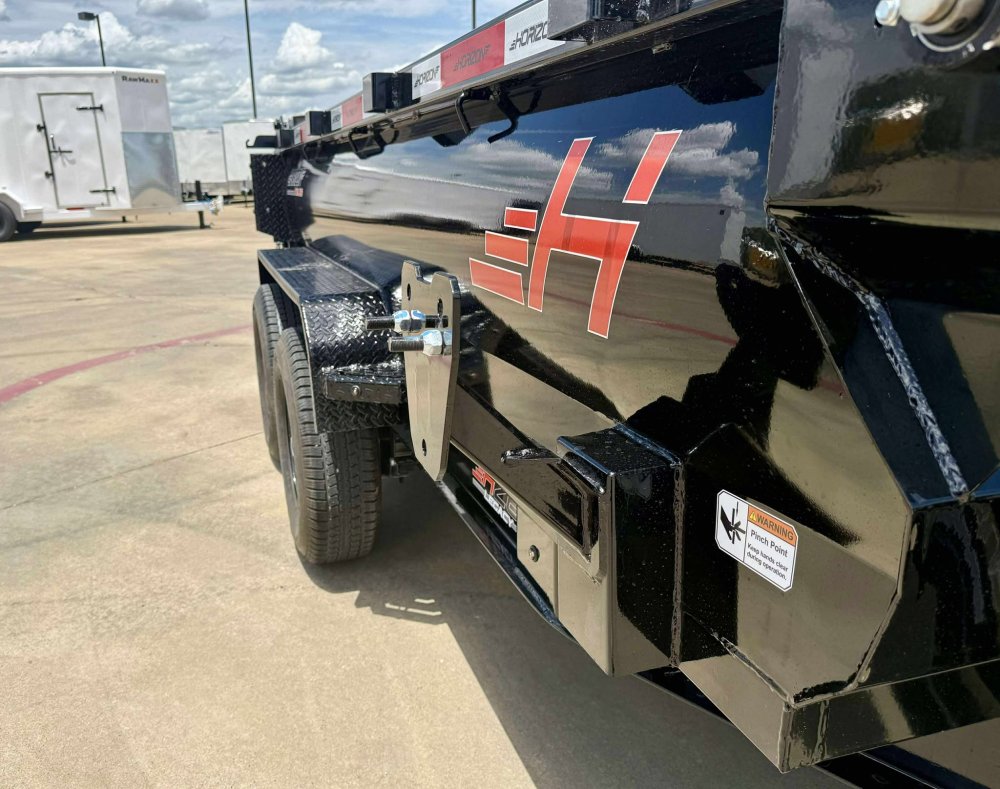

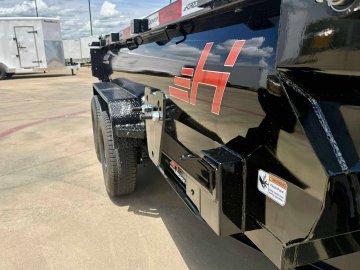

• Ramp pockets with slide-in ramps (5' long)

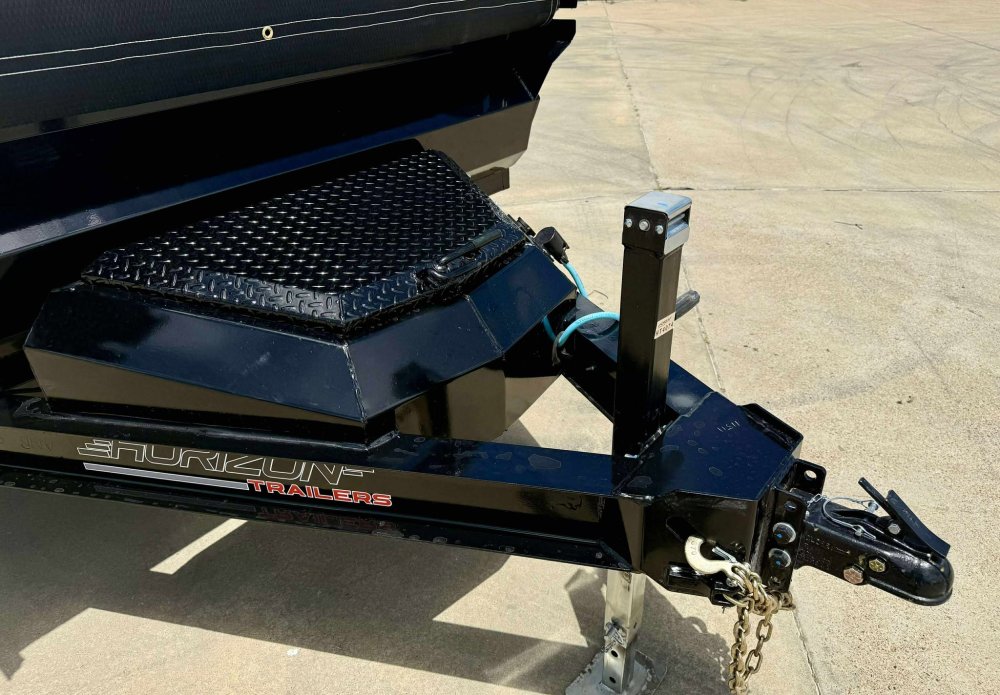

• Lockable front toolbox

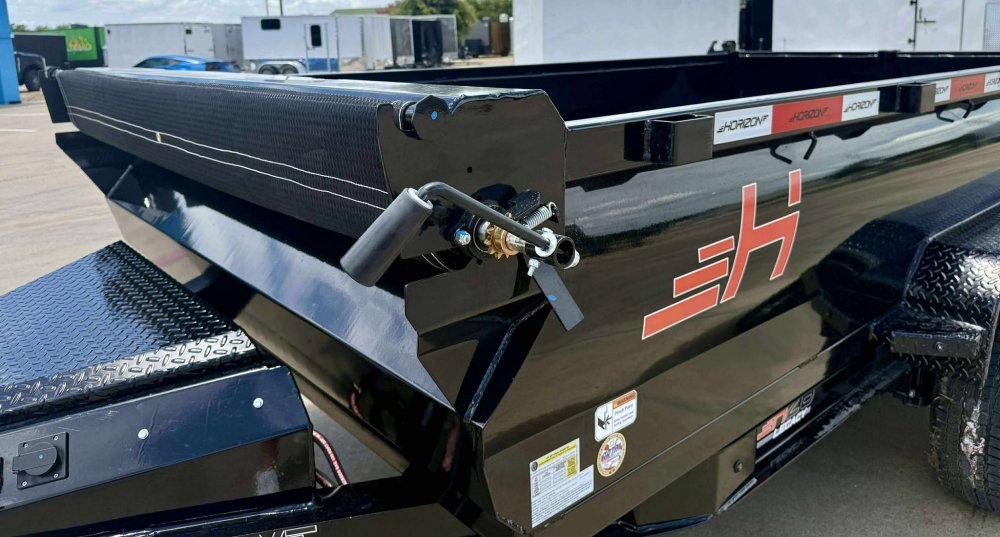

• Manual tarp kit
• Extra exterior marker lights
Hitch, Jack & Safety

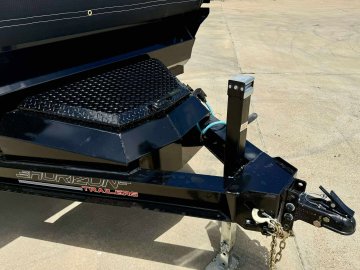

• Adjustable 2-5/16" coupler rated at 17,000 lbs
• 7,000 lb side-wind drop-leg jack
• Interstate Group 27 deep-cycle battery
• Integrated 110V trickle charger
• DOT breakaway kit with charger
Wheels, Tires & Electrical
• ST225/75R15 10-ply radial tires
• 6 on 5.5" bolt pattern
• All-weather 7-way RV plug
• DOT-approved LED lighting
