Winch: Carbon Scout Pro - 15000lb Winch V3

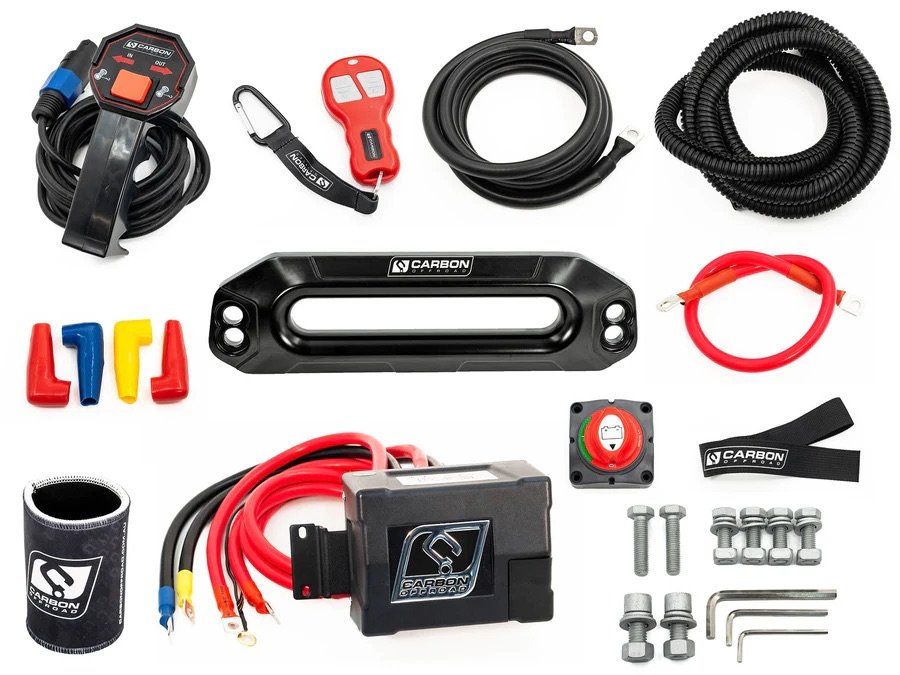

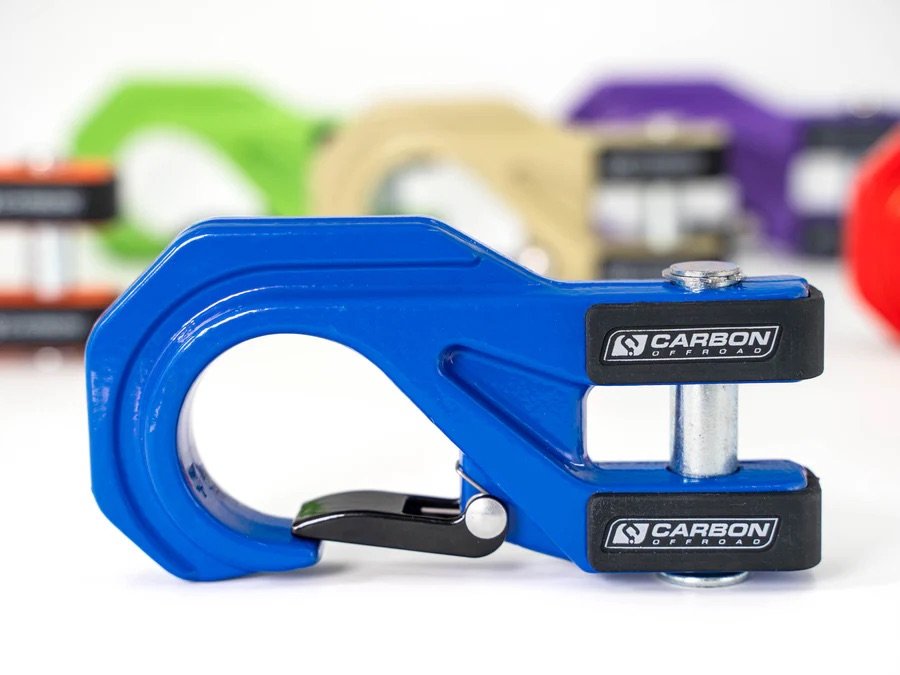

A powerful 15,000lb recovery winch with a 7HP series-wound motor, 218:1 gearing, and 78ft synthetic rope. IP68-rated and built for heavy overland rigs, RAM 1500s, 79 Series LandCruisers, and camper haulers, it includes wired and wireless remotes, a precision alloy fairlead, forged rope thimble, and MegaPro hook for reliable, heavy-duty performance.
Part number: CW-XD15
Rated line pull: 15000 lbs, (6803kg) single-line
Motor: 12V DC 7 HP series wound motor (24V option available)
Remote Control: Wired with 3.6m lead
Wireless Remote Control: Included
Geartrain: 3-Stage Planetary
Gear Ratio: 218:1
Rotating Ring Gear
Brake: Automatic brake in the motor bracket
Fairlead: Carbon Offroad MEGAPRO Premium CNC billet type 3 hard anodised multi position fairlead
Lifetime Mechanical Warranty
5 Year Electrical Warranty
5 Year Water Ingress Protection Warranty

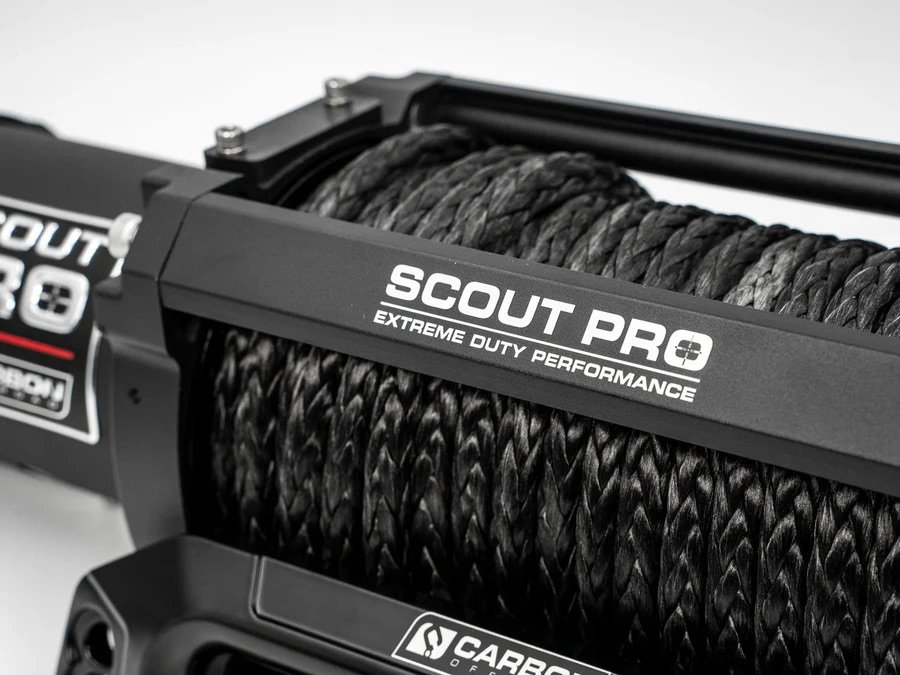

Synthetic Rope: 24m x 11mm diameter
Drum Diameter/Length: 63.5mm x 224mm
Mounting Bolt Pattern: 254mm x 114.3mm
Recommended Battery: 650 CCA minimum for winching
Winch Dimensions (L x W x H): 535 x 158 x 187mm
Packing Dimensions (L x W x H): 580 x 200 x 220mm
Winch weight including synthetic rope : 26.7lbs
