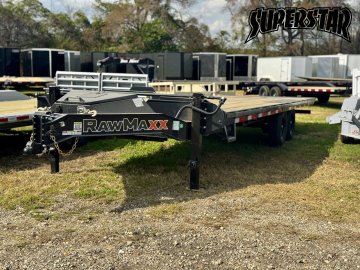

102"x26' RawMaxx DTX Full Tilt
RAWMAXX DTX Deck Over Tilt Trailer
Size & Configuration
26' long x 102" wide
Bumper pull configuration
Full hydraulic tilt deck
Frame & Structural Design
10" I-beam frame (13 lbs per foot)
3" channel crossmembers spaced 16" on center
6" channel outer deck frame
2" x 3/8" flat bar rub rail
3-7/8" x 1-13/16" inside dimension stake pockets
1-5/8" OD chain spool
3/16" thread plate fenders
2" treated lumber deck
Axles, Suspension & Running Gear
Two 7,000 lb axles with brakes
Spring suspension
ST235/80R16 10-ply radial tires (4)
Hydraulic & Electrical System
5" x 16" hydraulic cylinder
KTI hydraulic pump with wireless remote
10W solar panel
All-weather wiring harness
Hitch, Jack & Safety
2-5/16" adjustable ball coupler
Dual 10,000 lb side-wind drop leg jacks
3/8" G70 safety chains
3M DOT-compliant reflective tape
Cargo & Utility Features
Four D-rings
Integrated winch plate
Finish & Warranty
Powder coat paint finish
5-year Dexter axle warranty
3-year structural warranty
1-year paint warranty
