83"x14' Kearney STD Landscape
Key Features – 14' Kearney Landscape Trailer
Frame & Structural Construction
• 4" x 3" x 1/4" angle iron main frame
• Crossmembers: 3" x 2" x 3/16" angle iron
• Uprights: 2" x 2" x 1/8" angle iron
• Top rails: 2" x 2" x 1/8" angle iron (16' & smaller; no pipe top rail)
• 26" tall expanded metal sides with side bracing
• Fully undercoated with durable protective finish
Axles, Suspension & Running Gear
• (2) 3,500 lb cambered idler axles with Accu-Lube hubs
• Equalizer suspension with 4-leaf eye-to-eye spring system
• ST205/75R15 radial tires, load range C (6-ply)
• 5-hole powder-coated silver mod wheels (GM 5" bolt pattern)
Deck, Gate & Cargo Control
• Pressure-treated 2" x 8" pine flooring, double-screwed per board
• 4' tall expanded metal tailgate
• Spring-loaded latch pins with spring assist
• 18" rod hinge assembly
• (4) 3" stake pocket tie-downs (one at each corner)
Hitch, Jack & Towing
• 2" 7,000 lb RAM coupler with coupler hole cover plate
• Safety chains: 1/4" chain with safety hooks
• 2,000 lb top-wind jack with interchangeable pin-on sand foot
• Jack set back for tailgate opening clearance
• Tongue: 4" channel iron (16' & smaller models)
Storage & Landscaping Equipment
• 2' x 2' bolt-on lockable landscape toolbox (top rail mounted)

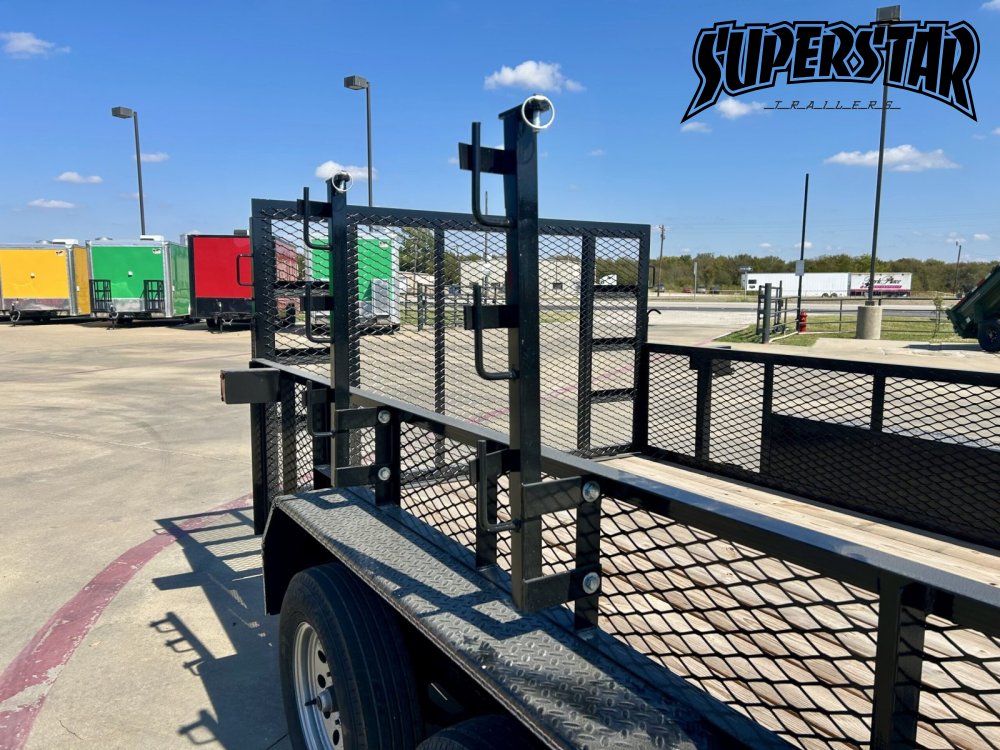

• Lockable weed eater rack set (holds 3 trimmers)
Electrical & Lighting
• LED rubber-mounted running, stop, turn, and clearance lights
• 4-way molded plug wiring harness grounded to frame
Finish & Appearance
• High-gloss acrylic polyurethane two-component paint finish
• Two-stage exterior prep with degreasing and acid phosphate wash plus rust inhibitor
• 9" x 72" 14-gauge straight tread plate fenders with smooth backings
• Standard white or black pin striping
• Warning, safety, and reflective Kearney logo decals
Warranty
• Limited two-year Kearney manufacturer warranty
